Sand Washing Line

【Capacity】:15-180t/h

【Feed Size】:«10mm

【Power】:5.5-15kW

【Application】:quarry, mine, building material, chemical industry, water and concrete mixer, etc.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2.Confidentially Agreement“ Business Secret CONTRACT”
3.Quality Assurance CONTRACT
4.SMALL Order welcomed
5.After sales services 24x7

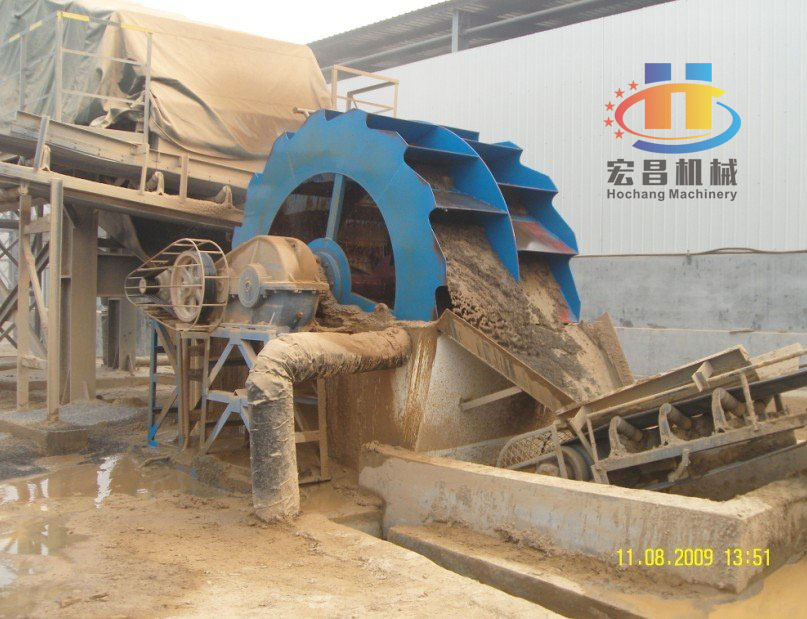

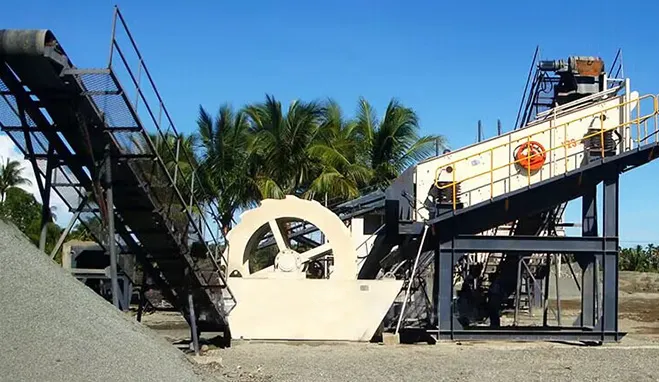

1 Sand Washing Line Introduction
sand washing line is commonly known as wheel-bucket type sand washer, and is high-efficiency sand washing equipment developed and produced by ZHM GROUP(Zhengzhou HOCHANG） through adopting domestic and overseas advanced technologies and combining the actual situation of domestic aggregate industry, which shall be used with the sand maker.

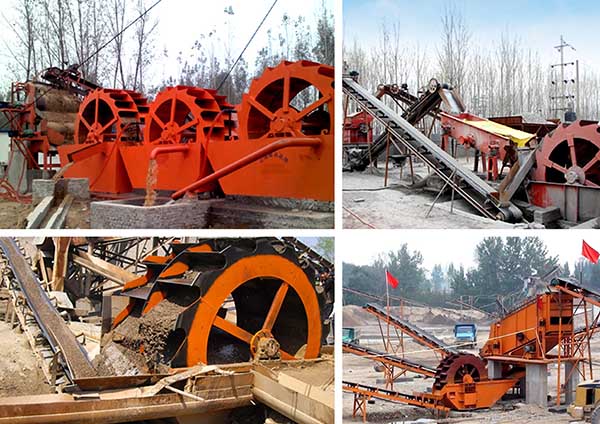

· sand washing machine is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc
· Capacity (t/h):20-350 TPH
· Feed Size (mm): ≤10
2 Sand Washing Line Appliction
sand washing line is applied for washing applications in sand plant, mine, concrete batching plant, and industries like building materials production, transportation, chemistry, water conservancy, etc.

Our mining sand washing machinery is a highly efficient machine designed on the basis of the detailed washing needs in mining industry and comes with features like good washing effect, reasonable structure, large capacity, and less sand loss during washing process.

The transmission part of this mining washing machinery is isolated from water and sand, which could greatly reduce the error rate of the machine.

3 Sand Washing Line working principle
When the sand washing machine worked, the motor drive the impeller slow rotation through the V-belt, reducer, gear reducer, sand and gravel are carried into the washed tank trough the feeder tank, tumbling by the impeller, grinding each other to remove the impurities which cover on the gravel surface, while destroying the vapor-coated layer of sand to facilitate dehydration; as the same time, add water to create a strong water flow to remove impurities in time, and issue from the export of washing tank, so that to complete the cleaning effect. Clean sand and gravel away from the blade, at the end the gravel was poured from the rotation of impeller to the exit of tank, so complete the gravel cleaning effect.

4 Sand washing line Technical data:

XSD Type sand washing machine

Models	XSD2610	XSD3016	XSD3620
Impeller Specification (mm) (D×W)	Φ2600x1000	Φ3000x1600	Φ3600x2000
Impeller Speed (mm)	1.178	1.179
Capacity (t/h)	20~50	50~120	120~180
Feed Size (mm)	≤10	≤10	≤10
Water Consumption (mm)	20~60	70~120
Electric Motor Power (KW)	7.5	15	18.5
Decelerator Models	ZQ50-50-I-Z	ZQ65-50-I-Z
Overall Dimensions (L×W×H)	3320×2125×2670	3810×2686×3085	4500×3206×3480

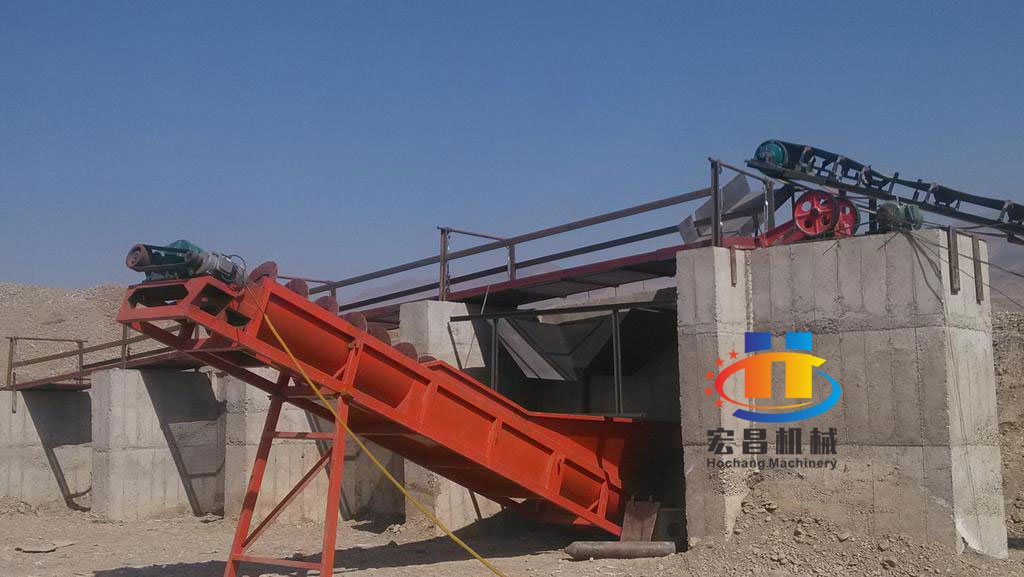

LSX Type sand washing machine

Model	Screw Diameter (mm)	Tank Length (mm)	Screw Quantity	Max Feeding (mm)	Capacity (t/h)	REV (r/min)	Power (kw)	Motor Model	Water Consumption (t/h)	Machine Size (mm)
LSX920	920	7585	1	≤10	100	21	6-11	Y160L-6/11	10-80	8420×2180×3960
2LSX920	920	7580	2	≤10	200	21	6-11×2	Y160L-6/11	20-160	8420×3970×3960
LSX1120	1120	9750	1	≤10	175	17	6-18.5	Y200L1-6/18.5	20-150	10770×3950×4860
2LSX1120	1120	9750	2	≤10	350	17	6-18.5×2	Y200L1-6/18.5	40-300	10770×5260×4860

5 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.

Equipments Included in the Production Line
