Wheel Impact crushing and screening plant

Wheel Impact crushing and screening plant

【Capacity】:80-250t/h
【Feed Size】:«450mm
【Power】:60-300kW
【Application】:Mobile impact crusher and screening plant is easily movable and transferable crushing machines used to reduce the size of rocks and other materials in aggregates production, recycling applications and in mining operations. It produces good shaped cubical products.

If you want to buy the product, contact us immediately, product prices will have a greater discount!
Email: info@zzhochang.com
Chat Online Get Latest Price

Enter email to free download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

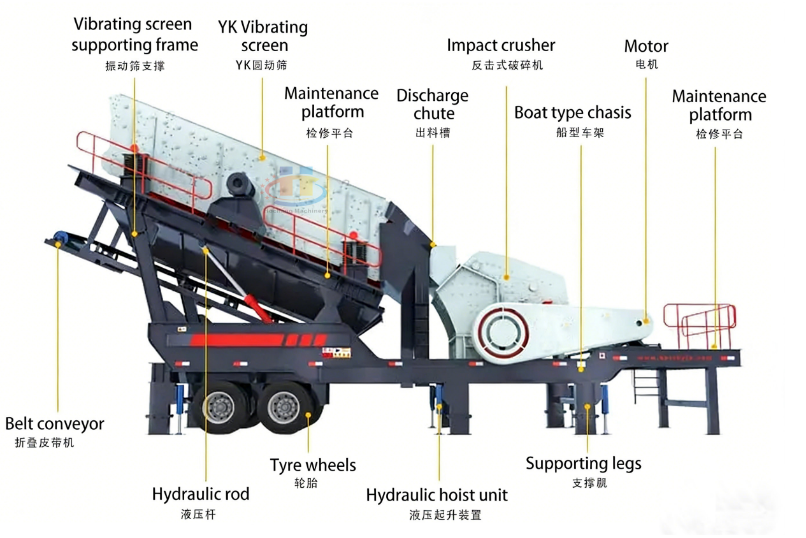

Mobile Impact crushing and screening plant Introduction:
Mobile impact crusher, equipped with high performance impact crusher and screening equipment, or add a feeder as a primary crushing machine. Related crushing equipment, screening equipment, feeding and conveying equipment are installed on a mobile device, with lightweight and reasonable structure design. The quality guarantee is reliable and stable. The mobile impact crusher plant has the characteristics of high crushing efficiency, multi-functionality, excellent quality of crushing products and so on. It can meet the crushing and screening requirements of coarse, medium and fine materials.



How to choose Mobile Impact crushing and screening plant?
  •  There are two kinds of mobile impact crusher, crawler type and tire type. Different types of stationary impact crushers can be configured as required, or they can be mounted on the same vehicle together with the vibrating screen to realize the integration of crushing and screening. According to the working structure, which configuration should be selected, the user can consult Baichy engineer online, and we can provide you with model selection and crushing plant planning services for free.
  • The mobile impact crusher does not need to make concrete foundation. It can be pulled and moved and be used immediately. The tire-type mobile impact crusher is pulled by a semi-trailer,which is convenient for narrow sites. Crawler-type mobile impact crusher plant can move by itself, and it can be remotely controlled. Compared with wheel type, the transition mobility is more flexible;
  • You can also choose a single impact crushing machine, or an integrated configuration of impact crushing and screening plant. The mobile impact crusher can also work together with other mobile equipment, and multiple units can work in parallel to form a graded crushing and mobile crushing production line.
  • The mobile impact crusher can be used alone, but if the particle size of the raw material is too large, it is usually used in combination with the mobile jaw crusher.


Mobile Impact crushing and screening plant specification：
Model Impact crusher Circular vibrating screen Belt conveyor Number of axis Transportation dimensions (mm)
WHC1015 PF1010 3YK1548 650*7 m 2 11500X2450X3950
WHC1218 PF1210 3YK1848 650*7 m 2 13800X2450X3950
WHC1418 PF1214 3YK1860 800*8 m 2 14000X2450X4280
WHC1321 PF1315 3YK2160 1000*8 m 3 14500X2950X4400
WHC1518 HC150 3YK1860 800*8 m 2 14500X3070X4585
WHC2521 HC250 3YK2160 1000*8 m 3 14500X3070X4585

Equipments Included in the Production Line
