Crawler Jaw crushing plant

Crawler Jaw crushing plant

【Capacity】:20-350t/h
【Feed Size】:<750mm
【Power】: 80-160kW
【Application】:A crawler mobile crusher is an integrated stone crushing system mounted on a heavy-duty track chassis. Crawler models thrive in rough, off-road conditions. There's no separate installation, concrete foundations, or external power sources (most are diesel-powered, with electric options available).

If you want to buy the product, contact us immediately, product prices will have a greater discount!
Email: info@zzhochang.com
Chat Online Get Latest Price

Enter email to free download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Crawler Jaw crushing plant Introduction

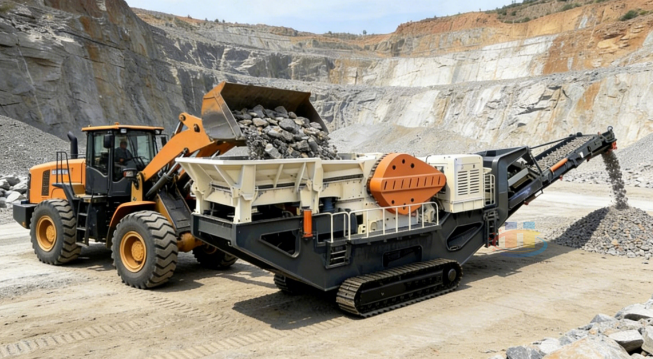

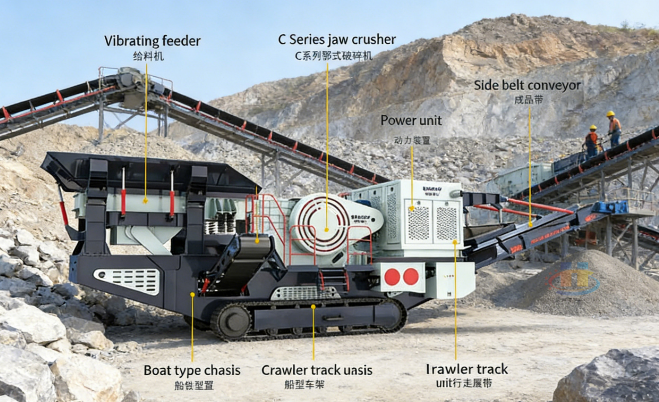

A crawler mobile crusher is a self-contained crushing system mounted on a heavy-duty rubber track chassis (similar to excavators or bulldozers). Unlike tire-mounted mobile crushers (limited to smooth roads), crawler models thrive in rough, off-road conditions. Its integrated design combines a crusher (jaw, cone, impact, or VSI), vibrating feeder, screening system (optional), and conveyor belts—all on one chassis. This means no separate installation, concrete foundations, or external power sources (most are diesel-powered, with electric options available). It is used to crush raw materials (ores, rocks, construction waste) into usable aggregates or processed material on-site, reducing the need to haul uncrushed material to fixed plants.



How to choose Crawler Jaw crushing plant?

  • The crawler mobile crushing station can be divided into four series - cone crusher crawler mobile crushing station, jaw crusher crawler mobile crushing station, impact crusher crawler mobile crushing station, screening crawler mobile crushing station. According to stone hardness, site conditions, etc. Engineers from Hochang Machinery could suggest appropriate mobile crusher.

  • Crawler-type screening and crushing equipment products are light in weight, small in size, adopt all-wheel drive. It can realize in-situ steering, standard configuration, quick-change device, and have perfect safety protection functions, especially suitable for working in narrow places.
  • Compared with various fixed crushing stations, the mobile crushing station is like a small and medium-sized crushing plant that can be moved, and its long-term work efficiency and operating costs are better than fixed crushing stations of the same level or higher.
  • The best noise absorption system, compact and flexible equipment, can better meet the construction waste crushing operation between urban areas, effective dust removal system, suitable for diesel engine noise emission.
  • Crawler mobile station can be used for mining, coal mines, construction waste crushing, rock, ore, block road, old asphalt concrete and other materials crushing process.


Crawler Jaw crushing plant Specification
 Model Max feed size (mm) Output size(mm) Jaw crusher Vibrating feeder Capacity
(t/h)
CHC-46 350 40-100 PE400*600 GZD0724 30-50
CHC-57 400 50-100 PE500*750 ZSW300*90 50-80
CHC-69 480 60-175 PE600*900 ZSW380*96 90-150
CHC-75 720 70-200 PE750*1060 ZSW110*420 150-250
CHC-912 720 70-200 PE900*1200 ZSW130*490 150-350


Equipments Included in the Production Line
