Wheel integrated crushing and screening plant

Wheel integrated crushing and screening plant

【Capacity】:50-120t/h
【Feed Size】:<425mm
【Power】:100-300kW
【Application】:Mobile Crushing and Screening machine is high-efficiency and modular stone crusher plant.  It can work by single machine, as well as combination of several machines to be a plant. It is widely used to limestone, granite, quartz, gold ore etc.

If you want to buy the product, contact us immediately, product prices will have a greater discount!
Email: info@zzhochang.com
Chat Online Get Latest Price

Enter email to free download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview



Integrated Wheel crushing and Screening plant Introduction

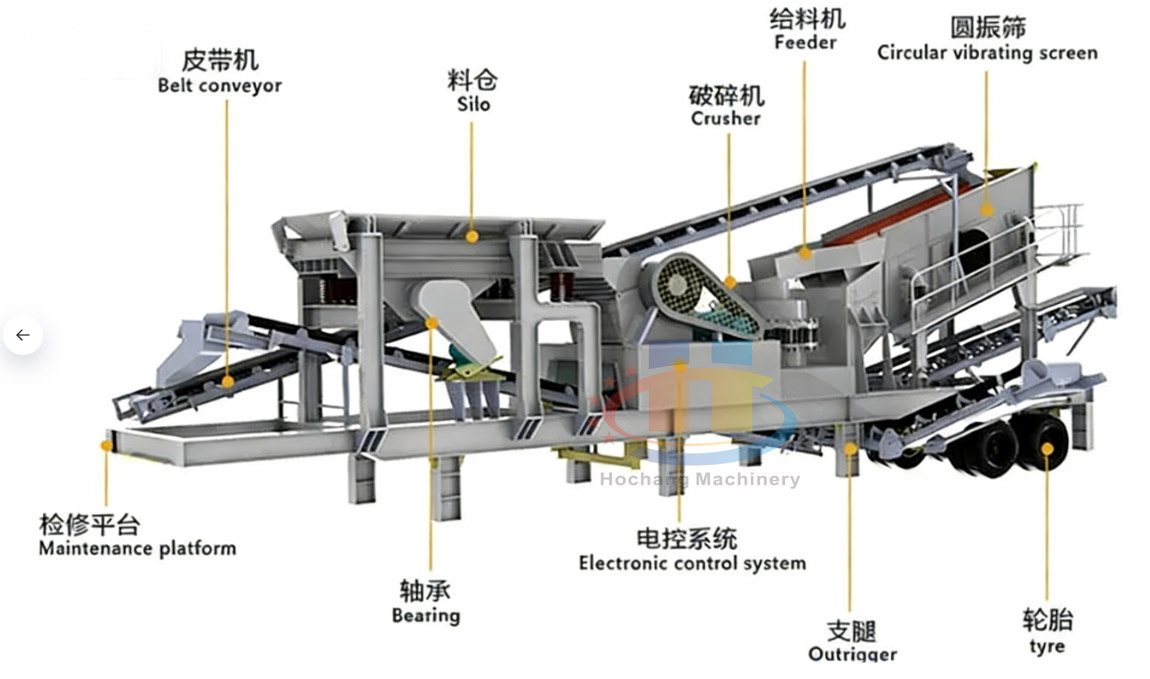

The integrated crushing and screening machine generally refers to installing the crusher and screening machine on a trailer to solve the problem of inconvenient movement for fixed stone crushing plant. The integrated crushing and screening plant integrates vibrating feeder, crusher, screening system, debris sorting device and conveying system. It is a movable stone production plant. According to the different ways of moving, it can be made to tire type and crawler type. The wheel type needs to be pulled by a semi-trailer, so it is mostly found in places where construction waste is disposed of; Crawler movement is more convenient, even mountains, climbing and other road conditions can be overcome, so it is mostly used in mines, wetlands and other harsh environment.

How to choose suitable mobile Integrated stone crushing and screening plant?
·  The mobile crushing and screening machine equipped with "feeder + jaw crusher + cone crusher + vibrating screen" can crush various stone materials and the finished material can keep within 0-40mm stably. It is mainly used for the production of aggregates , or secondary crushing stage when producing artificial sand. The cone crusher has low cost and large output for processing hard rock, and the overall service life of the equipment is long and there are few failures.
·  The mobile crushing and screening integrated machine equipped with "feeder + jaw crusher + impact crusher + vibrating screen" has two effects of two-stage crushing and sand making at the same time. The vibrating screen assists in sorting sand and gravel. It can handle most of the stone raw materials in the mining industry, and the output can be controlled within 0-40mm.The sand grain is regular, the overall finished product quality is high, good efficiency.
·  The mobile crushing and screening integrated machine equipped with "feeder + heavy hammer crusher + vibrating screen" has uniform particle size, good grain shape, and high quality. When the heavy hammer is used as the primary crushing machine, the processing capacity will be stronger, and feeding raw materials with larger particle size can be accepted, and the production cost will be lower.
· The mobile crushing and screening machine equipped with "sand making machine + vibrating screen" is a special combination for sand making. This combination can be used for sand making and used as a single machine. If the particle size of raw material is too large, it could be used in combination with mobile jaw crusher and mobile cone crusher, the finished sand can meet the high-quality construction sand standard.


Mobile Integrated stone crushing and screening plant Specification
                       Model HCPF46-1007 HCPC46-900 HCPF57-1210 HCPC57-75 HCPF96-1214 HCPC96-160
Vibrating Feeder ZSW0625 ZSW0625 ZSW8530 ZSW8530 ZSW9638 ZSW9638
Primary Jaw Crusher PE400×600 PE400×600 PE500×750 PE500×750 CJ96 CJ96
Feeding Size (mm) ≤350 ≤350 ≤425 ≤425 ≤480 ≤480
Feeding Size (mm) 15-60 15-60 40-130 40-130 60-160 60-160
Secondary Crusher Impact crusher Cone crusher Impact crusher Cone crusher Impact crusher Cone crusher
Model PF1007 PYB900 PF1210 CS75 PFW1214 CS160
Feeding Size (mm) ≤250 ≤115 ≤400 ≤150 ≤430 ≤205
Capacity (t/h) 15-60 15-90 70-130 27-163 100-180 109-349
Vibrating Screen 2/3/4YK1237 2/3/4YK1237 2/3/4YK1848 2/3/4YK1848 2/3/4YK1860 2/3/4YK1860
Belt Conveyor B500x8m B650 B650 B650 B800 B800
 Capacity (t/h) 15-60 15-60 60-100 100-150 150-180 180-300
Overall Size（mm） 11500*2050*5400 11500*2050*5400 15800*2300*5850 15800*2300*5850 18000*2700*7650 18000*2700*7650

*The output will vary according to different materials, feed particle size and other factors
