Apron Feeder/ Chain plate Feeder

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Apron feeder Introduction
Light, medium and heavy-duty plate feeders are extensively employed across industries including building materials, metallurgy, power generation, coal, chemicals and foundry work. They are particularly well-suited for conveying solid materials characterised by high moisture content, elevated temperatures, large particle sizes, sharp edges and high abrasiveness. Within the cement industry, they represent the preferred choice for clinker conveyance at the kiln tail of vertical kilns.

Working Principle oF Apron Chain Plate Feeder

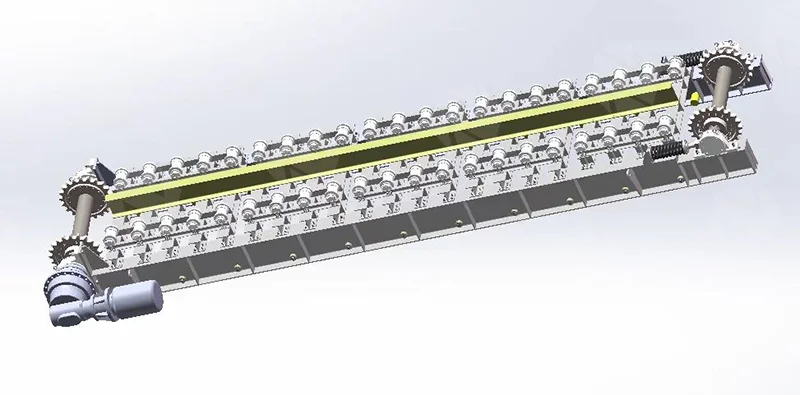

Apron chain plate feeder for cement is mainly composed of rolling bearings, sprockets, support rollers, hydraulic couplings, tensioning devices, and other parts. The power of the motor (or hydraulic motor) drives the sprocket to rotate through components such as couplings and reducers. The sprocket drives the conveyor chain and the chain plate to move forward together. At this time, the materials stacked on the chain plate move forward along with the chain plate, and are unloaded at the head of the plate feeder to achieve continuous feeding. During operation, the working part of the conveyor chain is supported by the upper support wheel, while the return chain plate is supported by the lower support wheel.

Apron feeder Specification

Model	Width(dm)	Length(dm)	Number of Axes	Number of Motor	Power(KW)	Capacity(t/h)
0806	08	18	6	1	11	54-144
0808	08	24	8	1	15	72-192
0810	08	30	10	1	18.5	90-240
1010	10	30	10	2	11	112-300
1012	10	36	12	2	15	135-360
1014	10	42	14	2	15	158-420
1212	12	36	12	2	18.5	162-432
1214	12	42	14	2	18.5	189-504
1216	12	48	16	2	22	216-576
1318	13	54	18	3	18.5	263-702
1418	14	54	18	3	18.5	283-756
1518	15	54	18	3	22	303-810
1520	15	60	20	4	18.5	337-900
1620	16	60	20	4	18.5	360-960
1820	18	60	20	5	18.5	405-1080
