Cone crusher

【Feed Size】: 65-300mm

【Processing capacity】:12-1000t/h
【Processing material】: granite, basalt, quartz stone, iron ore, pebbles, green stone, copper ore and limestone.
【Application range】: metallurgy, construction, road construction, chemical engineering, phosphate industry and mining.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?

Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2 FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT”
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7

Cone crusher Overview
1 Brief Introduction
Spring cone crusher is usually used as a secondary and third crusher in a crushing circuit, has advantage of stable structure, high efficiency, and easy adjustment. It can be widely used for crushing medium and hard stone, such as iron ore, copper ore, limestone, basalt, granite and dolerite, etc. Spring Cone crushers are usually run on belt drives, its spring protection system could keep it from metal damage.
2. Structure info.(Including Base Materials)
Cone crusher is mainly combined by hopper, frame, main shaft, eccentric sleeve, movable cone, concave, mantle, drive shaft, cone gears.

NO.	Parts	Material
1	Main shaft	35SiMn2Mov
2	Frames	ZG35
3	Concave	ZGMn13Cr2
4	Mantle	ZGMn18Cr2
5	Cone core	ZG35
6	Cone gears	35SiMn
7	Drive shaft	45
8	Eccentric sleeve	ZG35

3. Features of Cone Crusher

1. Higher productivity and quality

2. Reducing downtime

3. Easy maintenance, lower cost

4. Outstanding performance to crush bulk materials into fine, medium-fine, ultra-fine particle

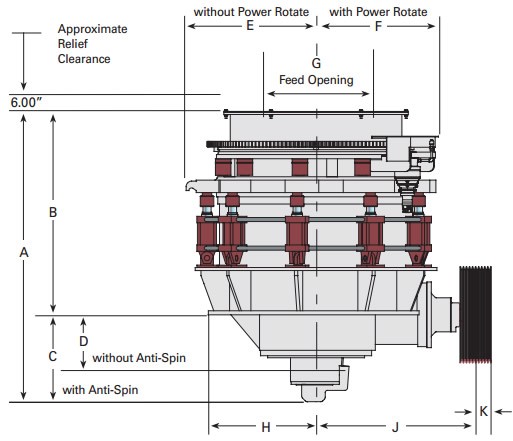

4. Working Principle of Cone Crusher

cone_crusher

5. Technical parameter of Cone Crusher

Specification	Model	Diameter of large end of crushing cone (mm)	Max.feeding size(mm)	Width of discharge opening (mm)	Processing capacity (t/h)	Motor power (kw)	Total weight (t)
Φ600	PYB600	600	65	12-25	40	8P 30	5
Φ600	PYD600	600	35	3-13	12-23	8P 30	5.5
Φ900	PYB900	900	115	15-50	50-90	8P 55	11.2
	PYZ900		60	5-20	20-65		11.2
	PYD900		50	3-13	15-50		11.3
Φ1200	PYB1200	1200	145	20-50	110-168	8P 110	24.7
	PYZ1200		100	8-25	42-135		25
	PYD1200		50	3-15	18-105		25.3
Φ1750	PYB1750	1750	215	25-50	180-360	8P 160	50.3
	PYZ1750		185	10-30	80-210		50.3
	PYD1750		85	5-13	60-180		50.2
Φ2200	PYB2200	2200	300	30-60	420-700	8P 280-260	80
	PYZ2200		230	10-30	130-410		80
	PYD2200		100	5-15	80-200		81.4

6 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.

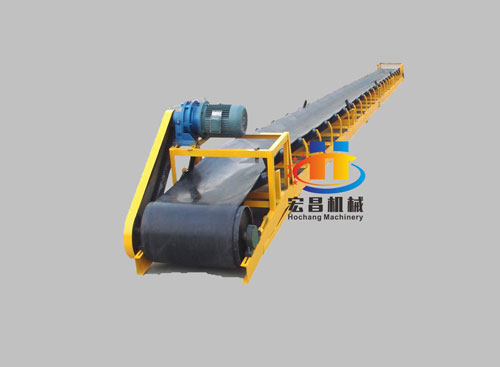

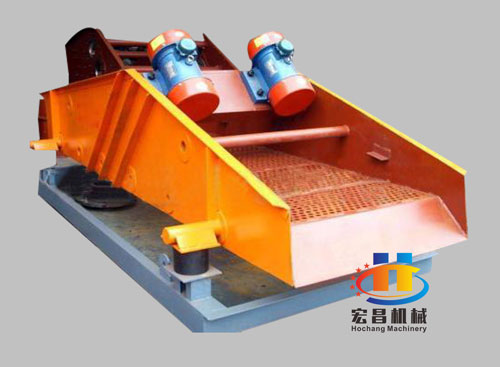

Equipments Included in the Production Line
