STONE CRUSHING MACHINE
Impact crusher

Impact crusher

【Capacity】: 30-800t/h

【Feed Size】300-700mm

【Adjusting range of outlet】:15-300 mm
【Application】 limestone, granite, cobble, dolomite, bluestone, iron ore, construction waste, glass, cement clinker, etc



If you want to buy the product, contact us immediately, product prices will have a greater discount!

Enter email to free download PDF

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us ?
Our Value Message is “QUALITY IS OUR CULTURE .”
WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!

1 .Competitive advantage Products
FULL REFUND In case of Bad Quality OR LATE Delivery
3.Confidentially Agreement“ Business Secret CONTRACT
4.Quality Assurance CONTRACT
5.SMALL Order welcomed
6.After sales services 24x7


Impact crusher Overview
 1 Brief Introduction
Hochang machienry Impact Crusher adopts the newest manufacturing technology and unique structure design, its crushed product is with perfect cubic shape, no tension and crack. This crusher can crush materials with size smaller than 500mm and resisting strength less than 350MPa, such as granite, limestone, and concrete aggregate, etc. It is widely used in road construction, railway and other industries.
2. Structure info.(Including Base Materials)
Impact crusher is mainly combined by frame, impact racks, impact plate, rotor rack, blow hammer, main shaft, bearings, liner plates, adjusting rod.

NO. Name Material
1 Frame Q235
2 Shaft 40Cr
3 Impact plates ZGMn13
4 Blow hammer ZGMn13
5 Impact racks Q235
6 Rotor Q235
7 Bearing seat/gland HT200
8 Pulley/flywheel HT150
9 Adjusting rod 45

 3. Features of Impact Crusher

1. Large feeding size and big crushing ratio;
2. Perfect cubic shape product and sturdy structure;
3. Convenient discharge opening adjustment for different products need;
4. High chromium hammer and unique lining plate are suitable to crush hard stones efficiently;
5. Hammers, impact plates and lining plates life is much longer.

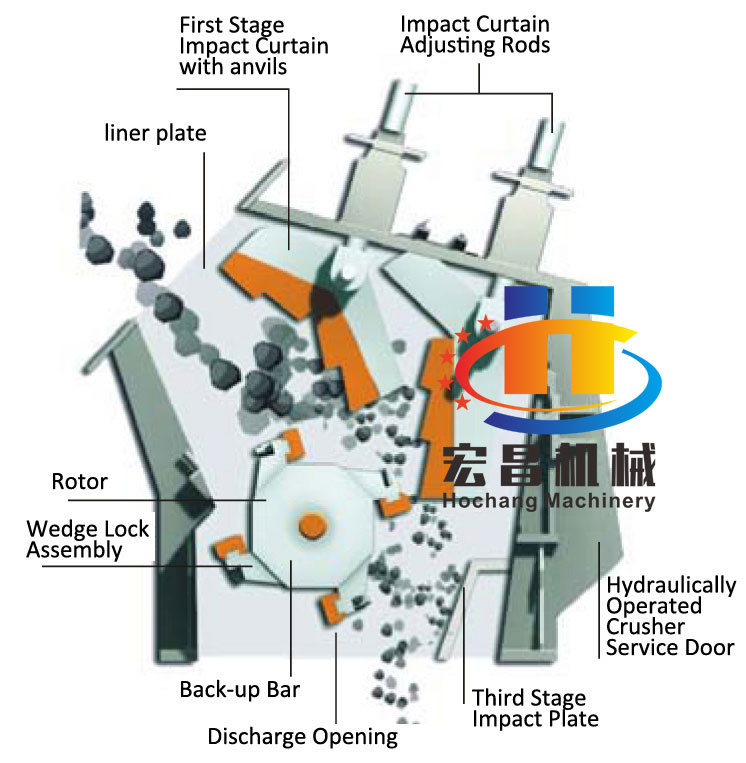

4.  Working Principle  of  Impact Crusher




5. Technical parameter of  Impact Crusher
Model Specification
(mm)
Feed
opening
(mm)
The Maximum
Feeding Size
(mm)
Capacity
(t/h)
Power
(kw)
Total
weight
(t)
Overall
dimension
(L×W×H)
(mm)
PF-1007 Φ1000×700 400×730 300 30-70 4P   37-45 12 2330×1660×2300
PF-1010 Φ1000×1050 400×1080 350 50-90 4P   45-55 15 2370×1700×2390
PF-1210 Φ1250×1050 400×1080 350 70-130 6P   110 17.7 2680×2160×2800
PF-1214 Φ1250×1400 400×1430 350 100-180 6P   132 22.4 2650×2460×2800
PF-1315 Φ1320×1500 860×1520 500 130-250 6P   220 27 3180×2720×2620
PF-1320 Φ1300×2000 993×2000 500 165-320 6P   250 34 3220×3100×2620
PF-1520 Φ1500×2000 830×2040 700 300-550 4P   315-400 50.6 3959×3564×3330
PF-1820 Φ1800×2000 1260×2040 800 600-800 6P   630-710 83.21 4400×3866×400
6 Safety Guarantee
Buyers of goods sold through Hochang machinery will be subject to Workplace Health and Safety laws applying to the places in which those goods are used. These laws vary from country to country. It is the Buyers obligation to obtain all appropriate information on the safe use of the goods supplied. Some goods may require repair, overhaul or commissioning before use. Wherever possible, manufacturers instruction and information on use will be supplied. The Buyer must, however, ensure that it obtains all instructions and information directly from the manufacturer in relation to the safe and appropriate start up, operation and maintenance of the goods and that the information is relevant to the particular goods being used. Any information, manuals and instructions supplied to the Buyer must be verified by the Buyer with the manufacturer.
