Vibrating Feeder

【Capacity】:50-560t/h
【Feed Size】:500-900mm
【Power】:11-30kW
【Application】:used to feed block and granular materials uniformly, regularly and continuously from the storage bin in to stone crushers. Also it could separate the raw materials primarily by grate plate.

If you want to buy the product, contact us immediately, product prices will have a greater discount!

Email: info@zzhochang.com

Chat Online Get Latest Price

Enter email to free download PDF

Name:

* Email:

Filling your email or name in the form for downloading the PDF can help you find the information you are looking for!

Overview

Why choose us?
Our Value Message is “QUALITY IS OUR CULTURE .”
“WITH US YOUR MONEY IN SAFE AND YOUR BUSINESS IN SAFE!”
1 .Competitive advantage Products
2.Confidentially Agreement“ Business Secret CONTRACT”
3.Quality Assurance CONTRACT
4.SMALL Order welcomed
5.After sales services 24x7

What is vibrating feeder?
Vibrating feeder is used to feed rocks to primary crushing equipment continuously and evenly in the sand and gravel production line to avoid blockage of the crusher receiving port. In the production process, it can feed the lumpy and granular materials from the storage bin to the receiving device continuously, evenly and regularly, thus preventing the receiving device from dying due to uneven feeding and prolonging the service life of the equipment.Vibrating feeder is widely used in crushing and screening operations in metallurgy, coal mining, building materials, chemical industry, abrasives, mineral processing and other industries.

How to choose vibrating feeder?

Vibrating feeders have steel plate structure and grate structure. The vibrating feeder with steel plate structure feeds all materials evenly into the crushing machine. It is mostly used in sand and gravel production plant.
Grate type vibrating feeder has a grading function and adjustable gap on the feeding surface near the discharge end, so it can separate the soil and fine-grained materials while feeding. This will improve primary crusher’s crushing efficiency.
Small vibrating feeder is used to uniformly, continuously or quantitatively feed blocky, granular and powdery materials from the storage bin or other storage equipment to the receiving equipment. It is suitable for automatic batching, quantitative packaging and automatic control.
The vibrating feeder produced by Baichy Machinery has features of stable vibration, reliable operation, low noise, low energy consumption, convenient equipment adjustment and installation. It can adopt a closed structure body to prevent dust pollution.

Working Principle

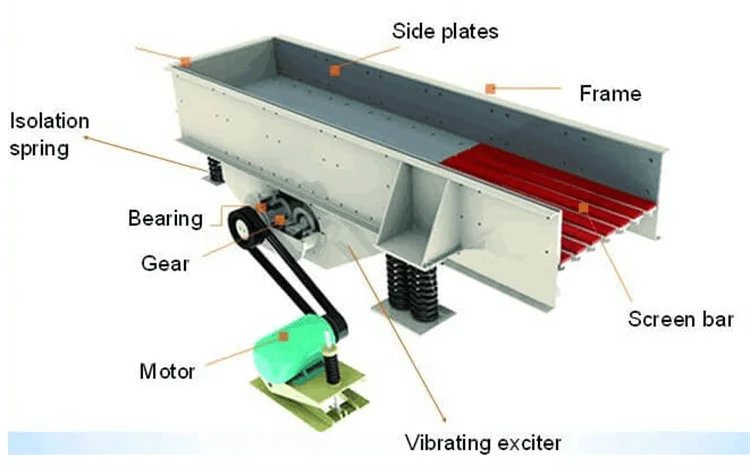

The vibrating feeder uses the eccentric block rotation in the vibrator to produce centrifugal force. The movable parts such as the screen box and vibrator can make forced continuous circular or approximate circular motion. Vibrating feeder is composed of feeding tank, vibration exciter, spring support, transmission device, etc. The vibration source of tank vibration feeding is the vibration exciter. The vibration exciter is composed of two eccentric shafts (active and passive) and gear. The motor drives the driving shaft through the triangle belt, and then the gears on the driving shaft mesh with the passive shaft to rotate. The active and passive shafts rotate reversely at the same time to make the tank vibrate and make the material flow continuously, so as to achieve the purpose of conveying materials.

ZSW Series Specification

Model	Trough size(mm)	Feed size(mm)	Motor power(kw)	Capacity(t/h)	Dimension(mm)
ZSW-850X3000	850X3000	≤400	7.5	80-120	3110X1800X1600
ZSW-960X3800	960X3800	≤500	11	120-210	3850X1950X1630
ZSW-1100X4200	1100X4200	≤580	15	200-430	4400X2050X1660
ZSW-1100X4900	1100X4900	≤580	18.5	280-500	5200X2050X1700
ZSW-1300X4900	1300X4900	≤650	22	450-600	5200X2350X1750
ZSW-1300x6000	1300x6000	≤700	30	450-680	6100X2350X1750
ZSW-1500X6000	1500X6000	≤1000	37	400-800	6100X2550X1860

GZD Series Specification

Model	Trough size(mm)	Feed size(mm)	Motor power(kw)	Capacity(t/h)	Dimension(mm)
GZD-650X2300	650X2300	≤300	1.1X2	30-50	2300X1360X780
GZD-700X2500	700X2500	≤350	1.5X2	50-80	2500X1460X780
GZD-900X3200	900X3200	≤560	2.4X2	80-150	3298X1512X1195
GZD-900X4000	900X4000	≤560	3.7X2	80-180	4100X1818X1134
GZD-1100X4800	1100X4800	≤600	5.5X2	150-300	4926X1676X1475
GZD-1200X5600	1200X5600	≤800	7.5X2	180-400	5704X1840X1492
GZD-1500X6000	1500X6000	≤1000	13X2	400-600	6110X2440X1560
